进纸部Paper feeding department:
Adopt belt feeding paper,it is suitable for coated, reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.
All the parameters and functions of the switch areoperated in the touch screen, and the operationpanel is equipped with a "Inch, start, stop, speedadjust" quick operation button.
纸张校正轨道Paper correction track：
Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.
The glue roller adopts 304 stainless steel glue roller which is corrosion-resistant. The glue model made of EVA sponge is simple and arbitrary. The glue is evenly spread, the thickness is easy to adjust, the glue is applied locally to the card position to save glue loss, and it is easy to clean.
Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting.It runs steadily at high speed and has high precision.
薄膜滚切与吸附Rolling cutting and absorbing of thin film：
Film cutting hob is a local sectional design. Compared with traditional whole section cutting, it has lower noise, less vibration, more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.
收纸部Paper collecting department:
Single stepper motor controls the operation of paper-collecting belt. Paper-folding distance can beadjusted wholly or segmentally and run at multi-speed.
All drives are driven by synchronous wheels and synchronous belts with low mechanical noise and high accuracy.

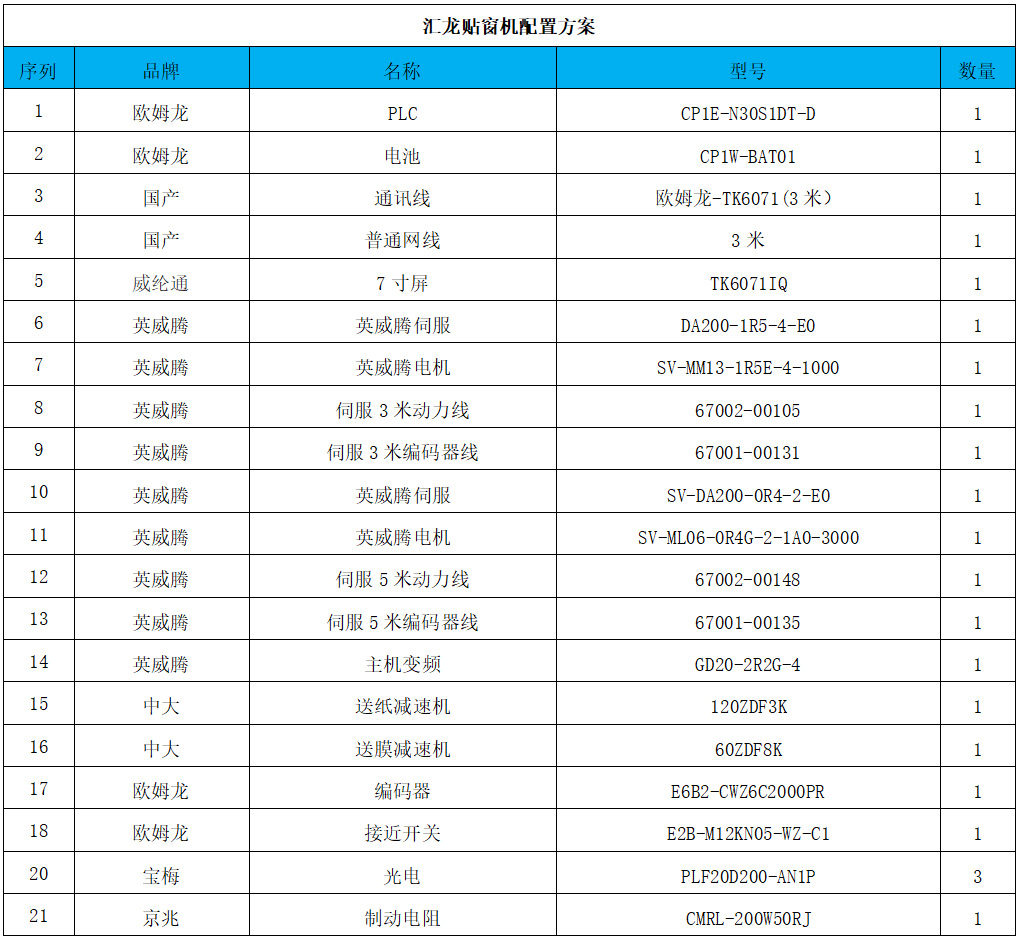

Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high.
机器加装项目Machine installation project：

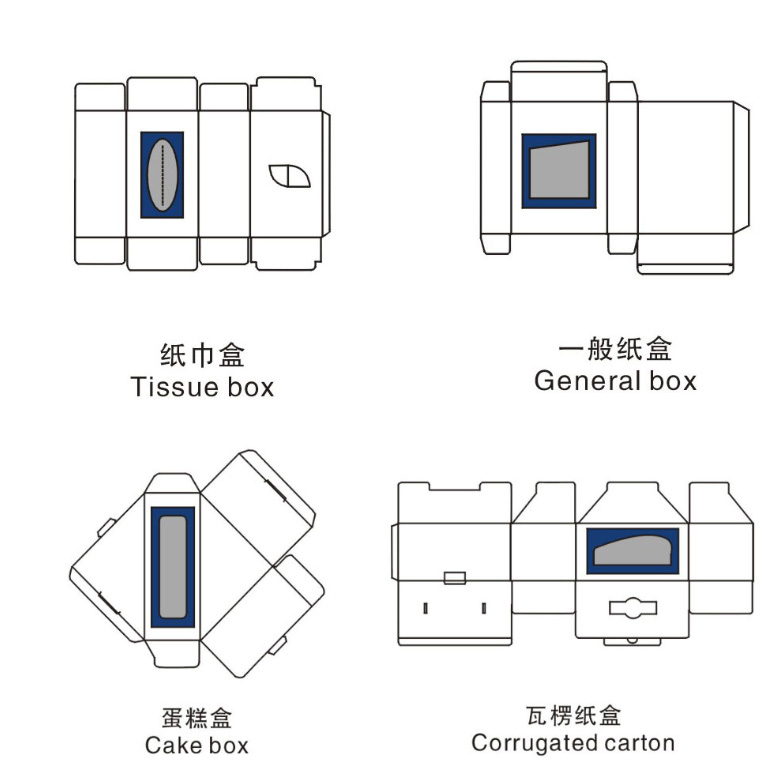

1. Paper towel box film opening device can be installed to open or cut off the local film.
2. A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same.
