TC-850K平贴全自动贴窗机

机器介绍Machine Introduction

TC-850K平贴全自动贴窗机适用于各种不同款式的开窗纸盒的窗口贴膜，具有如纸巾盒、礼品盒、玩具盒、化妆盒等，此设备具有高效、精准、稳定、易操作等特点，能大大的提高生产效率，从而降低生产成本。它使用范围广，各种异形盒子也能快速操作，UV、白卡纸、瓦楞纸都适用。故该设备深受新老客户青睐。

主要技术参数Specifications：

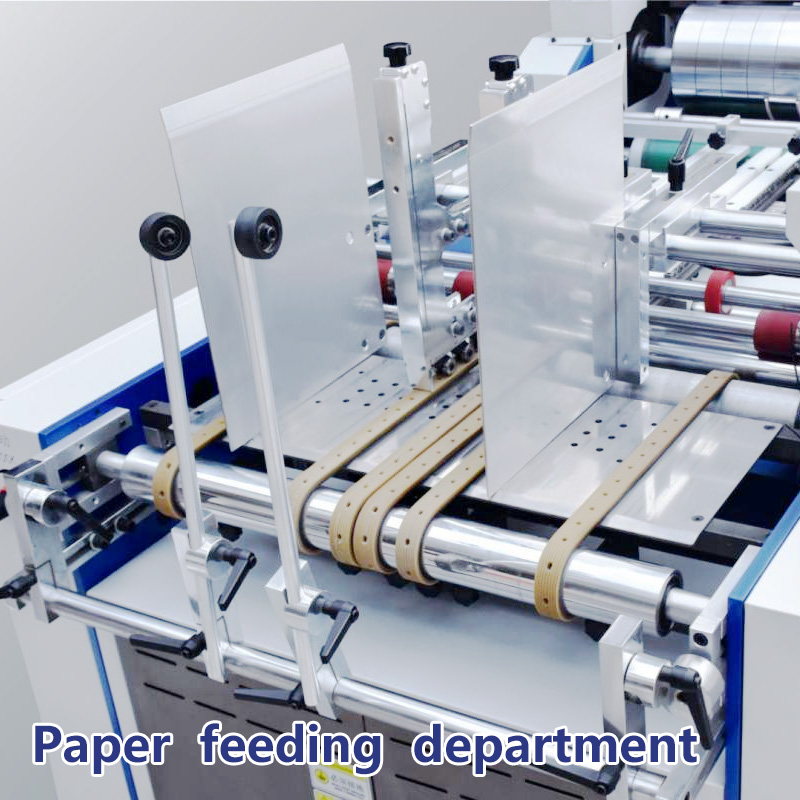

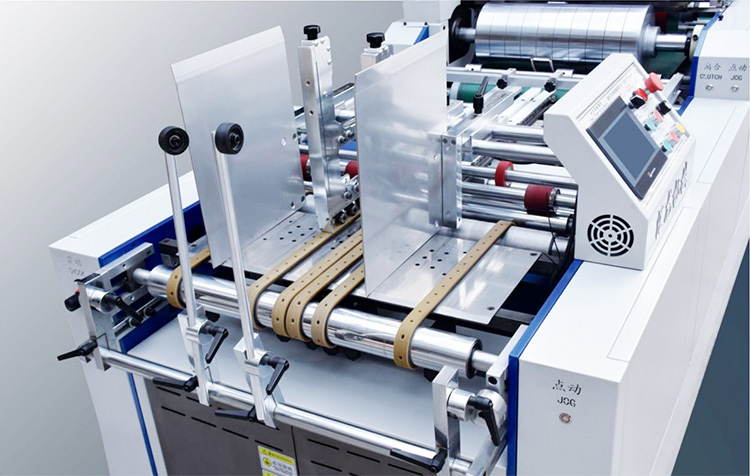

输纸部：Paper Delivery Department:

输纸皮带采用日本倪塔品牌及耐用牛筋皮带，可按产品需求选择,UV产品多的，可选择日本尼塔皮带，解决输纸不顺畅的问题。底部皮带真空吸附输纸，伺服电机驱动，可多种输纸模式切换。

The paper conveying belt adopts the Japanese Nita brand and durable beef tendon belts, which can be selected according to product needs. If there are many UV products, you can choose Japanese Nita belts to solve the problem of uneven paper conveying. The bottom belt vacuum absorbs the paper and is driven by a servo motor, which can switch multiple paper feeding modes.

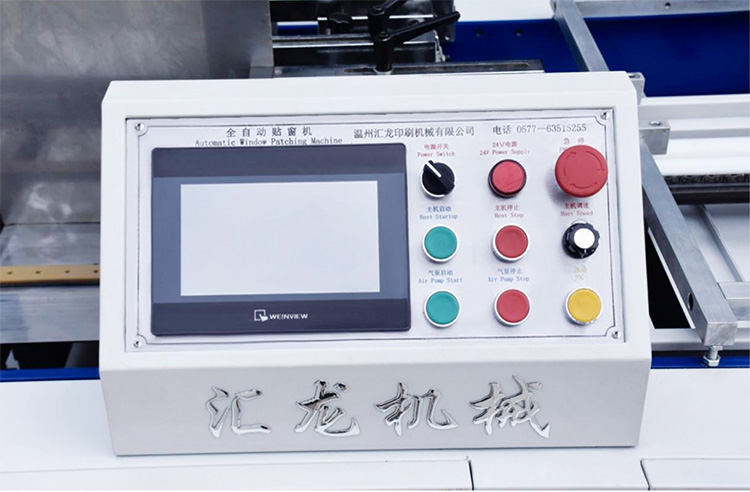

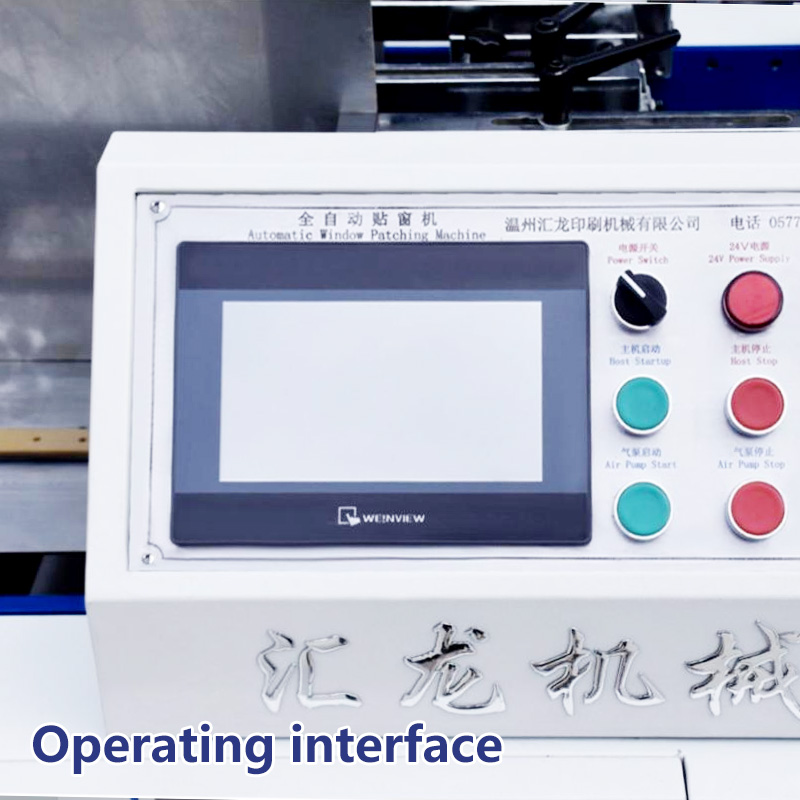

操作界面Operating interface:

所有参数的设置和功能的开关均在触摸屏内操作，操作面板外围设有“点动，启   动，急停，调速”快捷操作按钮.

All the parameters and functions of the switch areoperated in the touch screen, and the operationpanel is equipped with a "Inch, start, stop, speedadjust" quick operation button.

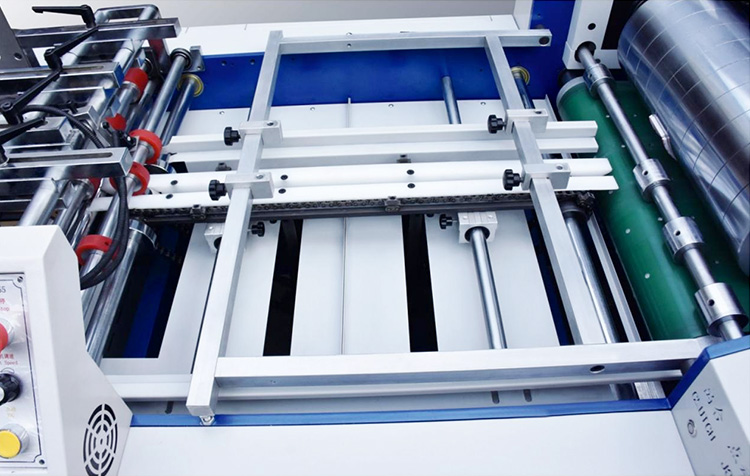

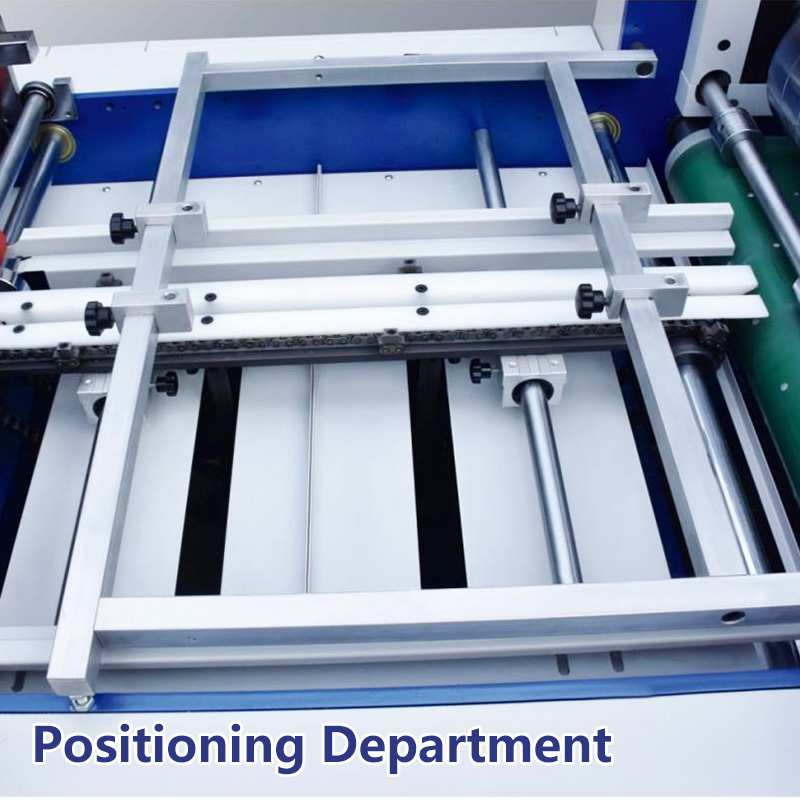

定位部：Positioning Department：

链条导条采用进口高分子材料耐磨静音，纸张定位采用四方推块增加纸张高速运行稳定性。

Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.

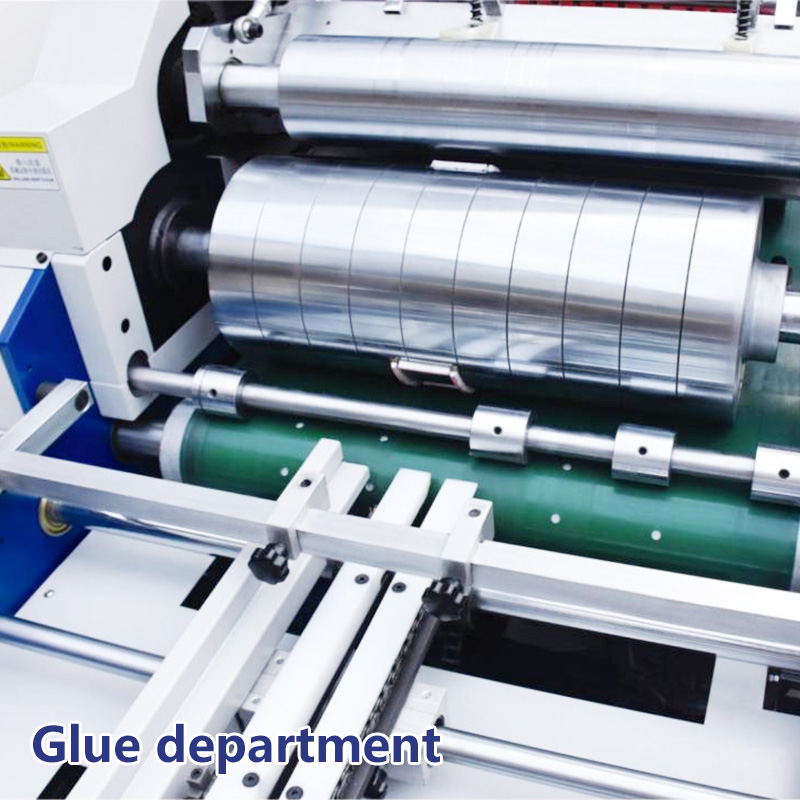

涂胶部：Glue department：

特殊机械结构设计通过海绵涂胶法，将胶水快速且均匀的涂于产品表面，刮胶效果好。

Special mechanical structure design uses sponge glue method to quickly and evenly glue glue It is applied to the surface of the product and has a good squeegee effect.

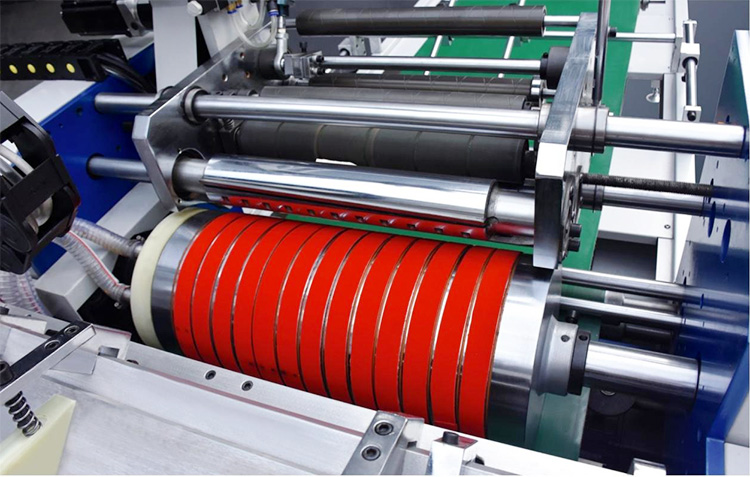

贴膜部：Film Department：

送膜采用伺服电机传送及滚筒吸附连续式粘贴，相比传统间歇式粘贴具有贴合速度快，精度高，对薄膜要求低等优点。

The film feeding adopts servo motor transmission and roller adsorption for continuous pasting. Compared with the traditional intermittent pasting, it has the advantages of fast bonding speed, high precision, and low requirements on the film.

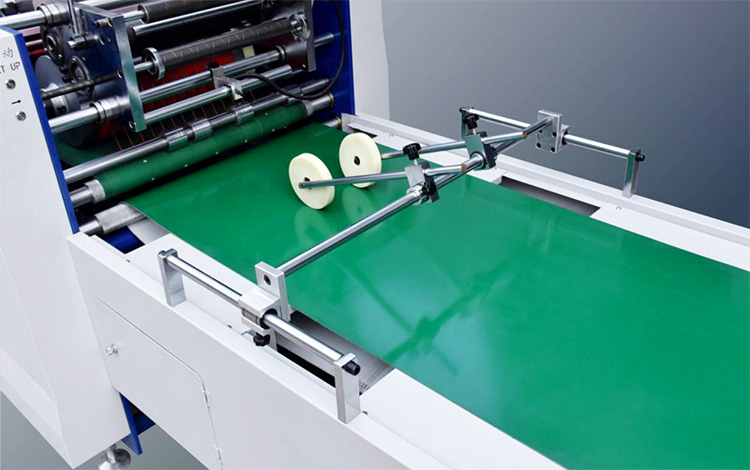

收纸台：Delivery station：

收纸台采用单独步进电机控制皮带运行，叠纸间距可整体或分段调节，多段速运行。可连续，停顿，点数灵活运用。进口柔软适中皮带输送可避免压伤产品，层迭式整齐收纸，确保质量,提高收纸效率。

The delivery table uses a separate stepping motor to control the belt operation, the stacking distance can be adjusted as a whole or in sections, and it runs at multiple speeds. It can be continuous, paused, and points can be used flexibly.

Imported soft and moderate belt conveying can avoid crushing the product, and stacking neatly collects paper to ensure perfect quality and improve paper delivery efficiency.

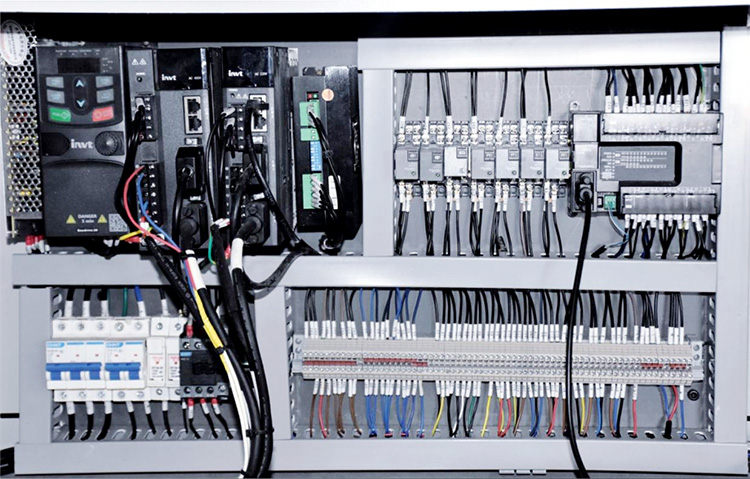

电气系统：Electrical System:

整机采用PLC程序控制，各种电气元件、检测开关均采用日本、台湾、法国、德国等公司产品。

The whole machine adopts PLC program control, and all kinds of electrical components and detection switches adopt the products of Japan, Taiwan, France, Germany and other   companies.
